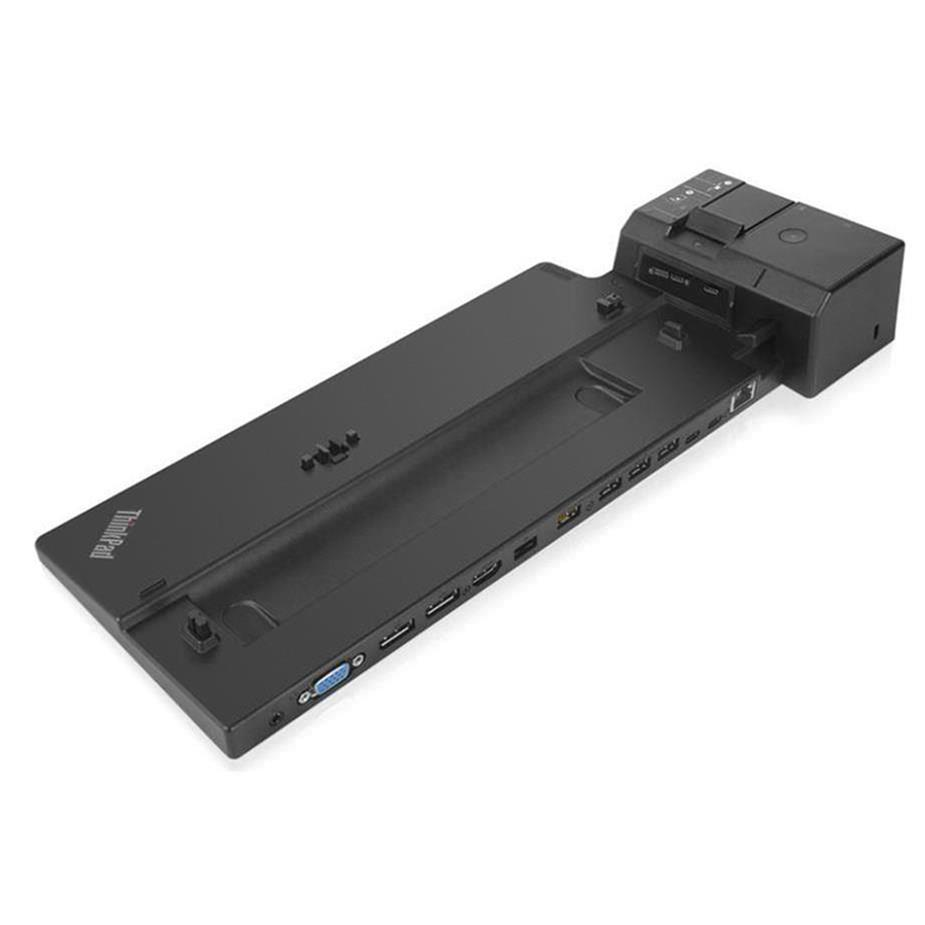

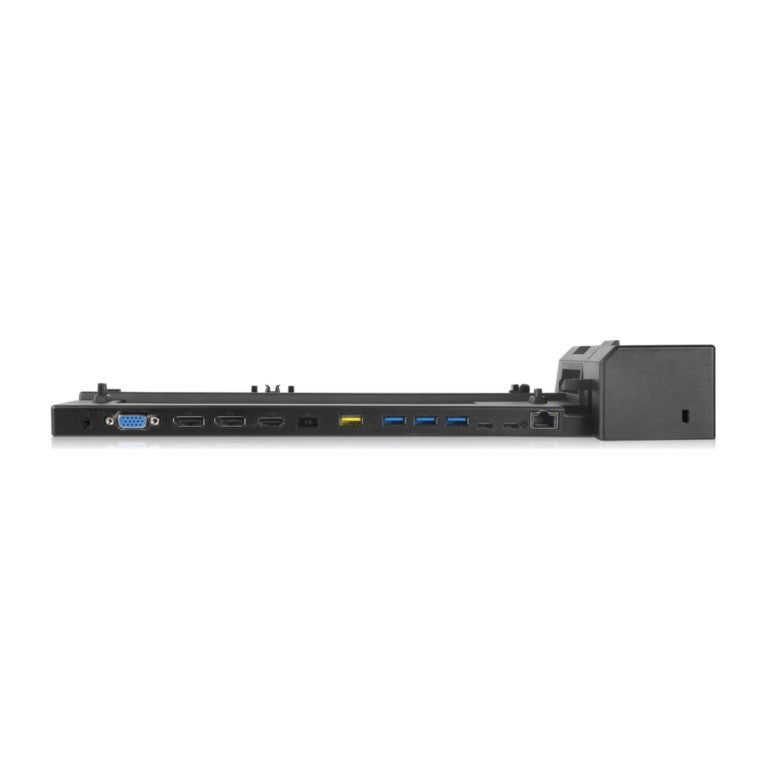

Lenovo ThinkPad Ultra Docking Station

Features and Specs

Lenovo ThinkPad Ultra Docking Station (40AJ) provides a docking experience for Large Enterprise ThinkPad customers. The innovative side connector, designed exclusively for ThinkPad notebooks, provides a driver-free way to connect conveniently and securely to a range of USB accessories and external displays, while rapid charging support and a mirrored power button make going mobile even easier. Dock without LAN chip, can support Wake on LAN, PXE Boot, vPro or DASH, which rely on System design.

Benifits

• Innovative side connection, exclusively for ThinkPad notebooks
• Designed with Enterprise IT in mind
• Upgraded performance

Specs:

• Product: ThinkPad Ultra Docking Station
• Power: ThinkPad 135W AC adapter (Slim tip)

• 4x USB 3.1 gen2 (10Gbps) with 1* always-on USB charging
• 2x USB-C ports (10Gbps, 5V 3A power)
• 1x 10/1000 Gigabit Ethernet
• 2x DisplayPort 1.4
• 1x HDMI 2.0
• 1x VGA
• 1x Stereo/Mic Combo Audio Port
• 1x Kensington Lock Slot
• DC-IN

• 4096 x 2160 @ 60Hz for DisplayPort
• 4096 x 2160 @ 60Hz for HDMI port
• 2048 x 1536 @ 85Hz for VGA port
